DistMesh.jl

DistMesh.jl is a Julia package for generating unstructured triangular and tetrahedral meshes. It uses Signed Distance Functions (SDFs) to define geometries, enabling the generation of high-quality, isotropic meshes for complex shapes defined by simple mathematical functions.

Installation

using Pkg
Pkg.add("DistMesh")

Introduction

A Simple Example Mesh

The primary entry point for 2D meshing is distmesh2d. It generates a mesh based on:

A distance function fd(p) (negative inside, positive outside). In this example, we represent the unit circle by $d(x,y) = \sqrt{x^2+y^2} - 1$.
A relative size function fh(p). For a uniform mesh, we can simply set $h(x,y)=1$.
An initial element edge length h0. Since our size function is uniform, this will also be roughly the final size of the generated elements.
A bounding box bbox for the domain. For the unit circle, we use the coordinates ((-1,-1), (1,1)).

The code below demonstrates how to implement this using DistMesh in Julia.

using DistMesh
using CairoMakie             # or Plots, or GLMakie (optional)

fd(p) = sqrt(sum(p.^2)) - 1  # or dcircle(p) - unit circle geometry
fh(p) = 1.0                  # or huniform(p) - uniform size function
hmin  = 0.2                  # initial edge lengths
bbox  = ((-1,-1), (1,1))     # bounding box for unit circle

msh = distmesh2d(fd, fh, hmin, bbox)

DMesh: 2D, 88 nodes, 143 triangle elements

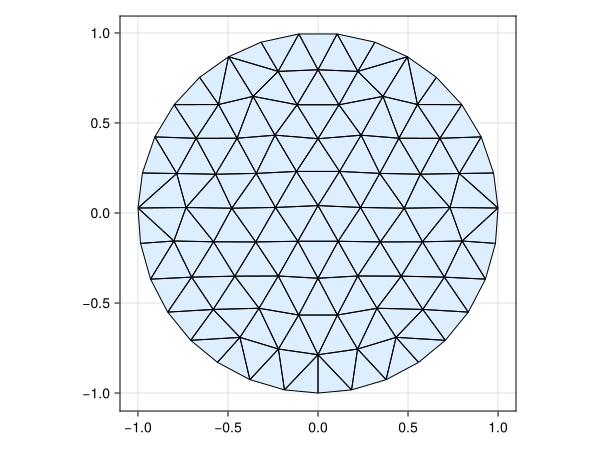

The resulting mesh can be visualized with the plot command.

plot(msh)

Accessing the generated mesh

The msh object contains the node coordinates p and the triangle indices t, stored as vectors of static vectors (for efficiency).

# Access the nodes and connectivity as vectors of static vectors
p, t = msh
p[1:3] # First 3 nodes

3-element Vector{StaticArraysCore.SVector{2, Float64}}:
 [-0.9856195803270693, -0.16897941441793268]
 [-0.9750280673839828, 0.22208166846316924]
 [-0.834804839939257, -0.5505459852663713]

t[1:3] # First 3 triangles (indices)

3-element Vector{StaticArraysCore.SVector{3, Int32}}:
 [48, 49, 37]
 [37, 49, 50]
 [48, 37, 36]

p[t[1]] # x,y-coordinates of the first triangle

3-element StaticArraysCore.SizedVector{3, StaticArraysCore.SVector{2, Float64}, Vector{StaticArraysCore.SVector{2, Float64}}} with indices SOneTo(3):
 [1.5443676823490012e-10, 0.041141826309186336]
 [0.11964714588337297, 0.23078113514802515]
 [-0.11964714570288205, 0.23078113535759998]

If you prefer a matrix-based representation (similar to the original MATLAB DistMesh, except transposed), the utility function as_arrays creates a zero-allocation view for this. Note that if you modify these matrices, the original versions in msh will also be changed!

# Access the nodes and connectivity as matrices
p_mat, t_mat = as_arrays(msh)
p_mat[:, 1:3] # First 3 nodes

2×3 Matrix{Float64}:
 -0.98562   -0.975028  -0.834805
 -0.168979   0.222082  -0.550546

t_mat[:, 1:3] # First 3 triangles (indices)

3×3 Matrix{Int32}:
 48  37  48
 49  49  37
 37  50  36

p_mat[:, t_mat[:, 1]] # x,y-coordinates of the first triangle

2×3 Matrix{Float64}:
 1.54437e-10  0.119647  -0.119647
 0.0411418    0.230781   0.230781

If you want separate re-allocated versions of these matrices, use collect.

Fixed points

An optional argument to distmesh2d is pfix - a vector of frozen points that are forced to be part of the generated mesh. These are typically required for boundaries with sharp corners, since the implicit geometry representation as a signed distance function does not explicitly provide them.

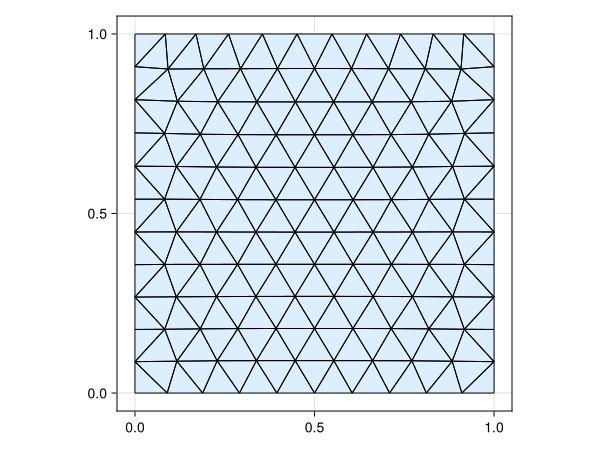

Here is a simple example of a mesh of a rectangle, where we include the four corner points in pfix.

fd(p) = drectangle(p, 0, 1, 0, 1)
pfix = ((0,0), (1,0), (0,1), (1,1))
msh = distmesh2d(fd, huniform, 0.1, ((0,0), (1,1)), pfix)
plot(msh)

Implicit Geometry vs Distance Function

Although the original version of DistMesh required actual signed distance functions for the geometry, this condition was relaxed in later versions. The algorithm actually accepts any smooth function with an implicitly defined zero level-set.

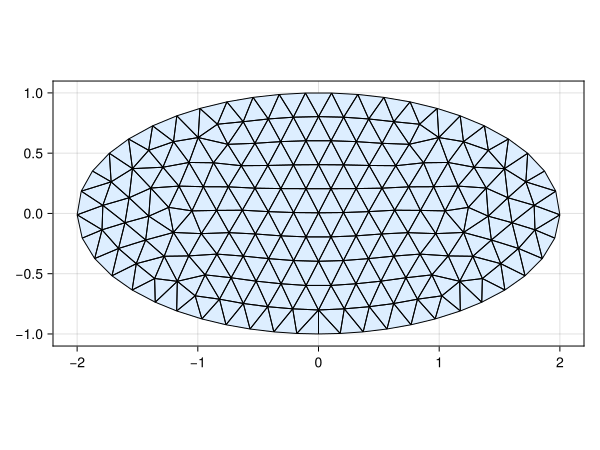

This can be very convenient when defining non-trivial geometries. For example, an ellipse with semi-axes 2 and 1 can now be represented as the zero level-set of $d(x,y)=(x/2)^2 + (y/1)^2 - 1$. Note that this is not the actual Euclidean distance function for the ellipse.

fd(p) = (p[1]/2)^2 + (p[2]/1)^2 - 1
bbox = ((-2,-1), (2,1))
msh = distmesh2d(fd, huniform, 0.2, bbox)
plot(msh)

Non-uniform size function

For non-uniform element sizes, we provide a (relative) size function $h(x,y)$. In general, it is best to make this an absolute size function that gives the actual desired edge lengths at point . To achieve this, you set the initial edge lengths hmin to the smallest value of $h(x,y)$ in the domain.

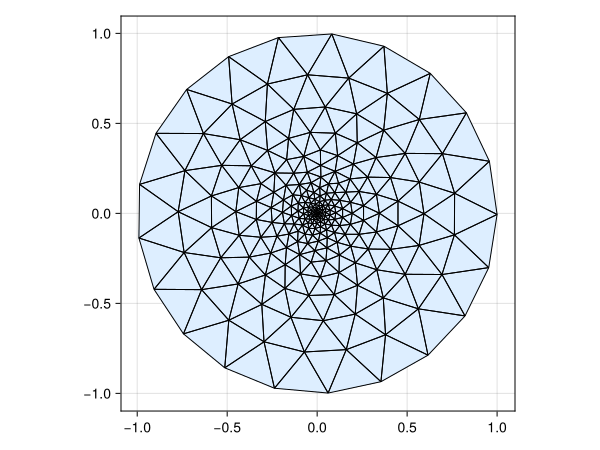

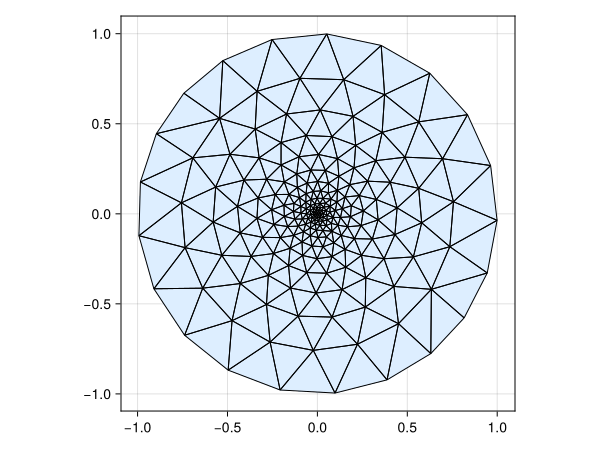

For example, to set the element sizes to at a source and let the element sizes increase linearly away from the source, we use a size function $h(x,y)=h_\mathrm{min} + 0.3d(x,y)$ where $d(x,y)$ is the distance function of the source.

# Point source
hmin = 0.01
fh(p) = hmin + 0.3 * dcircle(p, r=0)
msh = distmesh2d(dcircle, fh, hmin, ((-1,-1), (1,1)))
plot(msh)

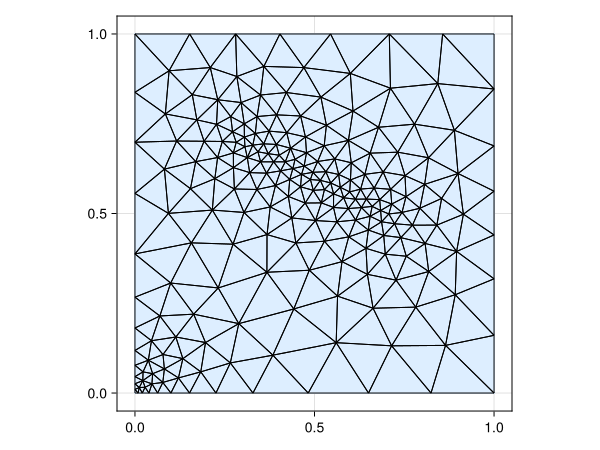

Multiple size function sources can be combined using the min function:

# Point and line sources
fd(p) = drectangle(p, 0, 1, 0, 1)
fh(p) = min(min(0.01 + 0.3*abs(dcircle(p, r=0)),
                0.025 + 0.3*abs(dpoly(p, [(0.3,0.7), (0.7,0.5)]))),
            0.15)
# Note: we explicitly add corners to pfix for the rectangle
pfix = ((0,0), (1,0), (0,1), (1,1))
msh = distmesh2d(fd, fh, 0.01, ((0,0), (1,1)), pfix)
plot(msh)

Randomness and Reproducibility

The DistMesh algorithm is notoriously chaotic, or sensitive to initial conditions. This means that very small perturbations in the mesh calculations can grow to large changes in the mesh (resulting in completely different meshes).

However, running on the same deterministic computer, if you repeat a distmesh2d call twice with uniform size functions, it usually gives two identical meshes because it uses a deterministic grid-based initialization:

msh1 = distmesh2d(dcircle, huniform, 0.2, ((-1,-1), (1,1)))
msh2 = distmesh2d(dcircle, huniform, 0.2, ((-1,-1), (1,1)))
msh1.p == msh2.p && msh1.t == msh2.t

true

For non-uniform size functions, DistMesh uses the rand function for the initial point distribution (rejection sampling). This means two meshes with identical inputs will in general not be the same:

fh(p) = 0.01 + 0.3 * dcircle(p, r=0)
msh1 = distmesh2d(dcircle, fh, 0.01, ((-1,-1), (1,1)))

DMesh: 2D, 234 nodes, 444 triangle elements

msh2 = distmesh2d(dcircle, fh, 0.01, ((-1,-1), (1,1)))

DMesh: 2D, 241 nodes, 459 triangle elements

# Check if they are identical (likely false)
msh1.p == msh2.p && msh1.t == msh2.t

false

Many times this is undesirable (e.g., for regression testing or debugging). You can seed the random number generator to make the meshes identical:

using Random
fh(p) = 0.01 + 0.3 * dcircle(p, r=0)

Random.seed!(1234)
msh1 = distmesh2d(dcircle, fh, 0.01, ((-1,-1), (1,1)))

DMesh: 2D, 247 nodes, 469 triangle elements

Now we generate the second mesh with the same seed:

Random.seed!(1234)
msh2 = distmesh2d(dcircle, fh, 0.01, ((-1,-1), (1,1)))

DMesh: 2D, 247 nodes, 469 triangle elements

Finally, we verify they are identical:

msh1.p == msh2.p && msh1.t == msh2.t

true

Save/export meshes

DistMesh does not provide built-in mesh export functionality to external formats. However, it is easy to write specialized routines, e.g., based on text files.

A common format is to have an initial line with metadata (number of nodes and elements), followed by comma-separated rows for node positions and element connectivities:

using DelimitedFiles

function savemesh(msh::DMesh, fname)
    open(fname, "w") do io
        p, t = as_arrays(msh)
        println(io, "$(length(p)) $(length(t)) # nbr_nodes nbr_elems")
        writedlm(io, p', ',')
        writedlm(io, t', ',')
    end
end

msh = distmesh2d(dcircle, huniform, 0.2, ((-1,-1), (1,1)))
fname = joinpath(tempdir(), "mesh.dat")
savemesh(msh, fname)
println("Mesh saved to file $fname")

Mesh saved to file /tmp/mesh.dat
