A collection of 2D meshing examples. Note that all the codes are available in the examples directory.

Polygon Mesh

using DistMesh
using CairoMakie

First, define the vertices of the polygon as a list of points (tuples)

pv = [(-0.4, -0.5), (0.4, -0.2), (0.4, -0.7), (1.5, -0.4),
      (0.9, 0.1), (1.6, 0.8), (0.5, 0.5), (0.2, 1.0),
      (0.1, 0.4), (-0.7, 0.7), (-0.4, -0.5)];

Next, use the dpoly function and these vertices to define the distance function

fd(p) = dpoly(p, pv)
fd (generic function with 1 method)

We use a uniform mesh size function, with a given desired edge length

hmin = 0.15
fh = huniform
huniform (generic function with 1 method)

DistMesh also needs a bounding box, which must enclose the polygon

bbox = ((-1,-1), (2,1))
((-1, -1), (2, 1))

Sharp corners have to be provided in the pfix argument

pfix = pv
11-element Vector{Tuple{Float64, Float64}}:
 (-0.4, -0.5)
 (0.4, -0.2)
 (0.4, -0.7)
 (1.5, -0.4)
 (0.9, 0.1)
 (1.6, 0.8)
 (0.5, 0.5)
 (0.2, 1.0)
 (0.1, 0.4)
 (-0.7, 0.7)
 (-0.4, -0.5)

Generate the mesh

msh = distmesh2d(fd, fh, hmin, bbox, pfix)
DMesh: 2D, 107 nodes, 160 triangle elements

Finally, plot the resulting mesh

plot(msh)
Example block output

NACA Airfoil Mesh

This example shows how to generate a mesh around a NACA0012 airfoil.

First, load the required packages and define a convenient short-hand for static 2D points.

using DistMesh
using CairoMakie
using StaticArrays

const Point2d = SVector{2, Float64}
SVector{2, Float64} (alias for StaticArraysCore.SArray{Tuple{2}, Float64, 1, 2})

First, we define the size function for the NACA airfoil. It consists of the minimum of several point sources and constants:

  • A point source at the tip of the airfoil, with size hlead
  • A point source at the trailing edge of the airfoil, with size htrail
  • A maximum element size in the entire domain hmax
function hnaca(p; hlead=0.01, htrail=0.04, hmax=2.0)
    minimum((hlead + 0.3 * dcircle(p, c=(0, 0), r=0),
        htrail + 0.3 * dcircle(p, c=(1, 0), r=0),
        hmax))
end
hnaca (generic function with 1 method)

Next, we define the fix points. This could be as simple as just the trailing edge at (1,0). However, the mesh quality is improved by providing several points along the surface, spread out consistently with the size function above. Therefore, this function also needs the edge length htrail from before. We also add the symmetry point (0,0).

function fixnaca(; htrail=0.04)
    a0, a14... = naca_coeffs
    fixx = 1 .- htrail * cumsum(1.3 .^ (0:4))
    fixy = a0 * sqrt.(fixx) .+ fixx .^ (1:4)' * a14
    fix = vcat(Point2d[(0,0),(1,0)], [ Point2d[(x,y),(x,-y)] for (x,y) in zip(fixx,fixy) ]...)
end
fixnaca (generic function with 1 method)

Finally, we can define a function for generating the arguments to distmesh2d for generating the NACA mesh. The parameters are the sizes from before, as well as a center point (circx,0) and a radius for the far-field circle boundary.

function dm_naca(; hlead=0.01, htrail=0.04, hmax=2.0, circx=2.0, circr=4.0)
    # Distance function: Difference between the outer circle and the NACA airfoil
    dfcn(p) = ddiff(dcircle(p, c=(circx, 0), r=circr), dnaca(p))

    # Size function: Given by `hnaca` above
    hfcn(p) = hnaca(p; hlead=hlead, htrail=htrail, hmax=hmax)

    # Fix points: Add symmetry points for the circle plus the ones from `fixnaca`
    fix = Point2d[(1,0),(0,1),(-1,0),(0,-1)] .* circr .+ Point2d[(circx,0)]
    fix = vcat(fix, fixnaca(htrail=htrail))

    # Bounding box: Determined by the far-field circle
    bbox = [(circx - circr, -circr), (circx + circr, circr)]

    # The `hmin` parameter needs to be the smallest element size in the domain
    hmin = minimum((hlead, htrail, hmax))

    dfcn, hfcn, hmin, bbox, fix
end
dm_naca (generic function with 1 method)

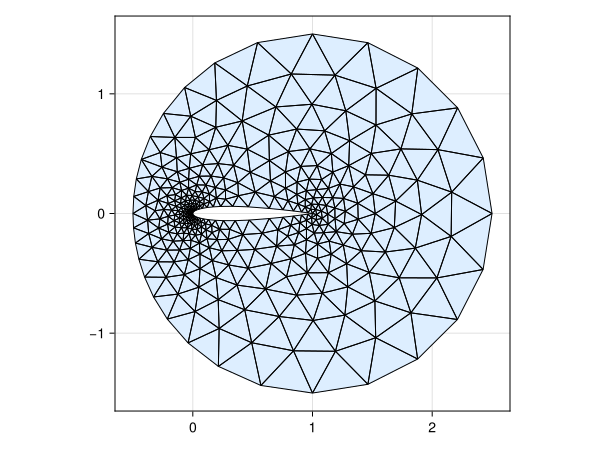

Now we can generate and plot the default mesh

msh = distmesh2d(dm_naca()...)
plot(msh)
Example block output

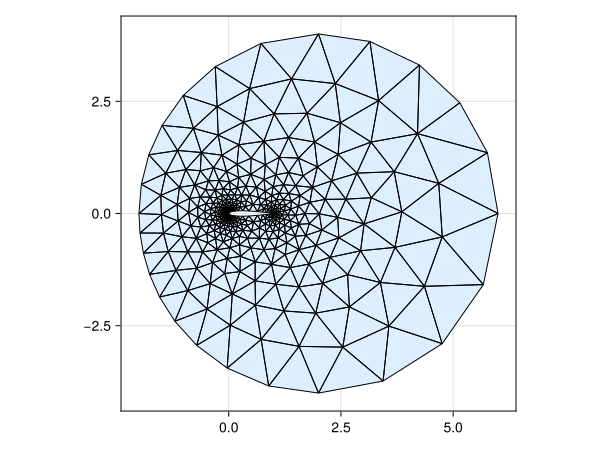

We can modify the mesh, e.g. by shrinking the farfield circle

msh = distmesh2d(dm_naca(circx=1, circr=1.5)...)
plot(msh)
Example block output

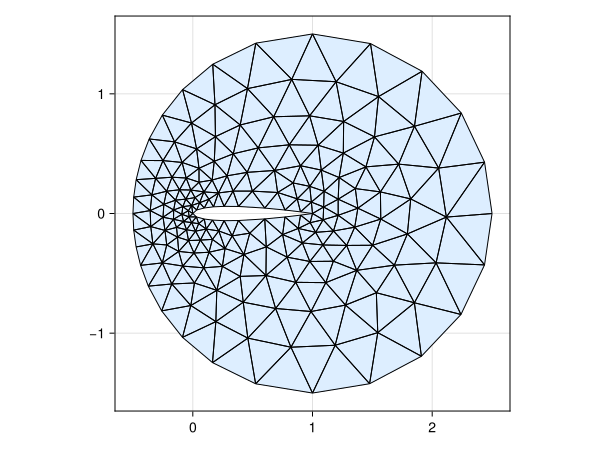

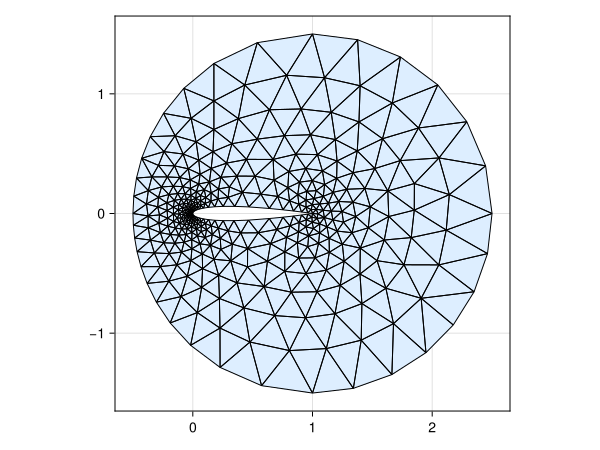

Finally, we can increase the element sizes at the sources

msh = distmesh2d(dm_naca(circx=1, circr=1.5, hlead=0.05, htrail=0.1)...)
plot(msh)
Example block output
